Feasibility report of pp hollow grid construction board

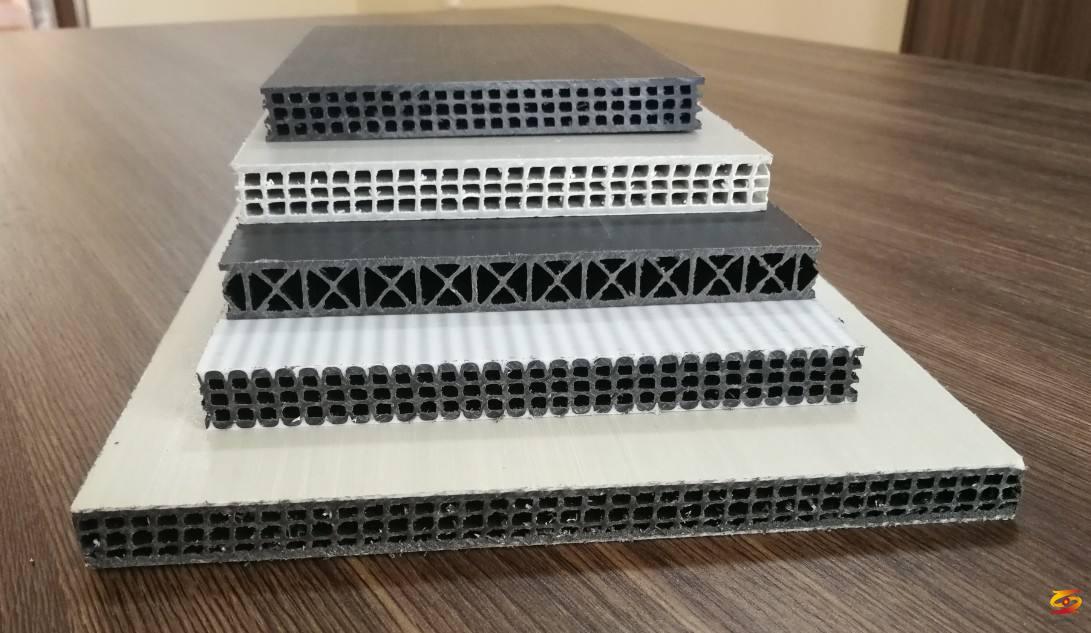

Hollow plastic building template equipment

Feasibility report


ONE. Characteristics and advantages of hollow plastic building templates

1. Reduce costs. Hollow building formwork turnover of more than 50 times
2. Energy saving and environmental protection. No harmful gas is released from the hollow building template, and the template can be repeatedly processed and regenerated after being scrapped.
3. Smooth and smooth. The surface of the hollow building template is smooth and flat, and the demoulding effect exceeds the technical requirements of the clean water template, eliminating the second plastering.
4. Stable weather resistance. The hollow building template is resistant to aging, acid and alkali, corrosion, and has a small expansion coefficient.
5. Superior performance. The hollow building template has high strength, good toughness, no cracking and no layering.
6. Light and easy to install. Lightweight and easy to install, each piece weighs 14-15KG, which is only half of the wooden formwork, saving time and effort for workers.
7. High price recycling. After the template is scrapped, the company can recycle it at a high price.
8. Easy to store. The hollow building template is cold-resistant, high-temperature resistant, insect-resistant, and does not require special treatment for storage.
9. Easy demoulding. No need to brush the mold release agent for demoulding.
10. Strong variability. The template can be arbitrarily cut, cut and drilled.

two. Hollow plastic building template parameters
1. Size: Width: 915mm, Length: 1830mm, Thickness: 14mm, 15mm, 16mm.
2. Weight: the thickness of 14mm, the weight of one board is 13.5 ± 0.5kg
With a thickness of 15mm, a board weighs 14 ± 0.5kg
Thickness of 16mm, a board weight 15 ± 0.5kg

3. Use comparison of hollow composite plastic and formwork wood formwork (bamboo formwork formwork)
Name Hollow composite plastic template Wooden template (bamboo template)
Unit price 100 yuan / Above ground: 30 yuan /
Underground: 20 yuan /
Weight light heavy
Use frequency 50-100 times 5-8 times

four. Comparison table of cost performance of various templates
Template type / performance Hollow plastic template Ordinary plastic template Bamboo template Aluminum alloy template
Wear resistance Wear resistance Wear resistance Not wear resistance Wear resistance
Corrosion resistance Corrosion resistance Corrosion resistance Not corrosion resistance Corrosion resistance
Toughness can be bent into an arch formwork
Impact strength High strength Fair Poor Fair
After absorbing water, no deformation, no deformation, easily damaged and deformed, no deformation
Customer customized size can be customized can be customized can not be customized can be customized
Release property Self-releasing Self-releasing Brush release agent Brush release agent
Warpage after use No warpage Easy warpage Easy warpage No warpage
Weight (kg / m²) 8kg 15kg 7.2kg 25kg
Recyclable Recyclable Recyclable Non-Recyclable Recyclable
Machinability, easy processing, relatively easy, difficult, difficult
Environmental protection pollution-free pollution-free pollution environment pollution-free
Cost of use Low High High High
Turnover 50-100 20-30 3-6 80-100
Price (yuan / m²) 80 yuan 75 yuan 35 yuan 800 yuan
Residual value (yuan / m²) 25 yuan 18 yuan 1 yuan 200 yuan
Assessed price (yuan / m²) 1.1 yuan 2.8 yuan 5.6 yuan 6 yuan
V. Comparison of the use cost of hollow plastic building template and wooden template (bamboo template) in 3 buildings
Hollow composite plastic template wood template (bamboo template)
The cost of the first building: 7500x100 yuan / = 750000 yuan above ground: 7500x30 yuan / = 225000 yuan.
Above ground: At least 3 batches of template are needed for 30 floors, above ground cost: 225000x3 = 675000 yuan
Underground: 1000x3x20 yuan / = 60,000 yuan.
Total: 675000 + 60000 = 735000 yuan.
The cost of the second building: 1. Same house type, 100% utilization rate, cost: 0;
2. Take the different apartment types as an example: the utilization rate is 70%, and the cost is: 7500x30% x25 = 56250 yuan (the price for the old one is 25 yuan /) The same as the cost of the first building template, 735000 yuan

Cost of the third building: Same as the cost of the second building. It's also 735,000 yuan
The total cost of 3 buildings is 750000 + 56250 + 56250 = 862500 yuan
Recycling: 7500x30 yuan / = 225000 yuan (recycling: 50 yuan / sheet)
Then the actual cost of use is: 862500-225000 = 637500 yuan. 735000 × 3 = 220500 yuan.

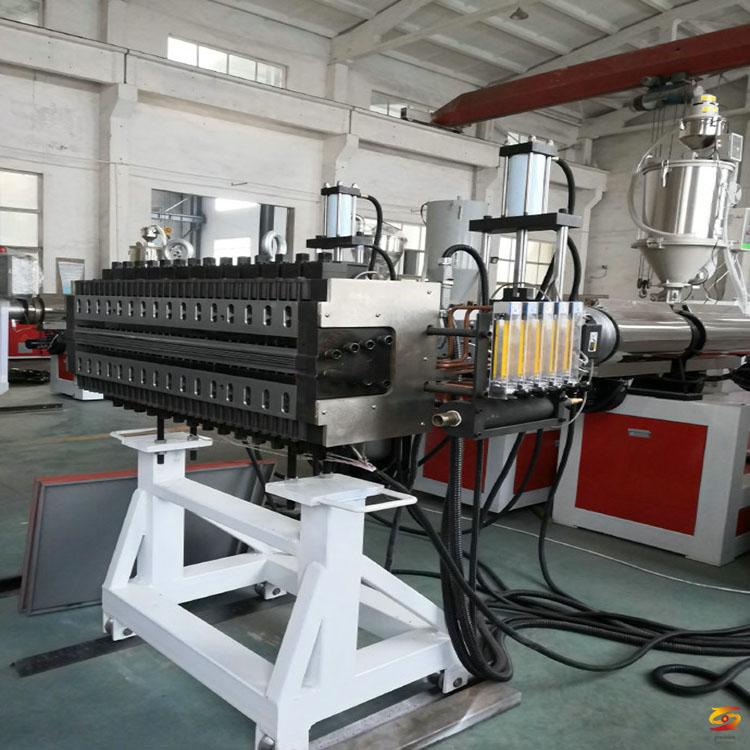

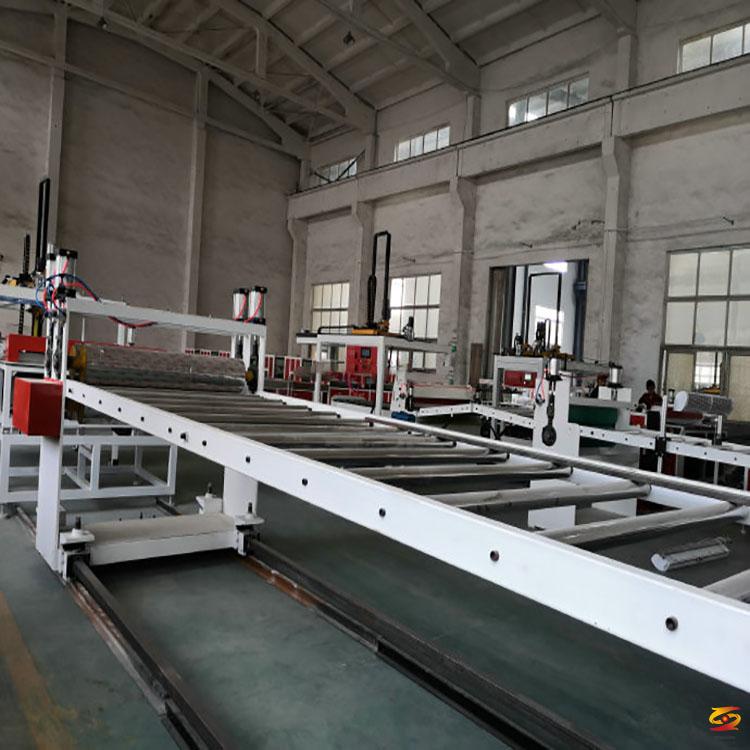

six. Production equipment for hollow plastic building templates

Main equipment configuration
One SJ-120 single screw extruder set
Two SJ-65 single screw extruder set
Three hydraulic quick screen changer two sets
Four metering pumps two sets
Five sets of dispensers
Six sets of hollow sheet molds
Seven sets of cooling platform
Eight sets of cooling brackets and trimming devices
Nine sets of traction devices
Set of ten cutting machines
Eleven stacking rack set
Twelve 30P chiller set
Set of 13 vertical drying mixer
14. Electrical Control System


7. Summary:
It can be seen from the comparison that the use of hollow composite plastic formwork is about 35% of the cost of bamboo and wood formwork, which has good economic value and saves construction costs.
Architectural formwork is divided into large board (1220 * 2440) and small board (915 * 1830). The thickness is between 12-18, represented by the thickness of 14. Such a formwork is often used. Let's take this as an example and talk about his costs and profits in an easy-to-understand manner. I believe this is the voice of all investors who want to invest.
The weight of one square is about 8 kg, and the price of PP raw materials is currently about 6500-7000 yuan / ton on the market. The price of this raw material will fluctuate, and the price will be different in different periods of the region. Please pay attention to the price of local materials, so as to more accurately estimate the profit margin.
One large board (1.22 * 2.44) 2.97 square meters * 8 kg / square ----- 23.76 kg * (6500-7000) ------ 154-161 yuan / sheet
A small board (915 * 1830) 1.67 square meters * 8 --------- 13.4 kg * (6500-7000) ----------------- 86-91 Yuan / Zhang
The above is the raw material cost of a large board and a small board. The current market price is about 80 yuan / square. In other words, the big board is 237, the small board is 107, and the profit margin is still very attractive.
Some people will ask about the output, OK, a production line can produce about 600-800 large boards 24 hours a day, and if operated properly, it can be up to about 900 sheets. Then, calculate how much you can earn in a day. Hey, that's quite objective. By the way, I also mentioned that the cost of raw materials was high, and one ton of product would add 300-500 yuan of depreciation for hydropower equipment. It is such an exaggeration, which is still quite objective.
The equipment investment threshold is relatively high. Because the future is bright, if you have this strength, please take action to squeeze out and change the world and squeeze out a better life.
