PLASTIC PROFILE LAMINATING MACHINE

  • MAXIMUM LAMINATING WIDTH:300MM
  • LAMNATING SPEED:2-25M/MIN
  • LAMINATING THICKNESS:3-80MM
  • WEIGHT:ABOUT 2 TON
    • WINDOW DOOR FRAME PROFILE LAMINATING FILM MACHINE
    Inquiry Send Email

    Description

    Purpose function:

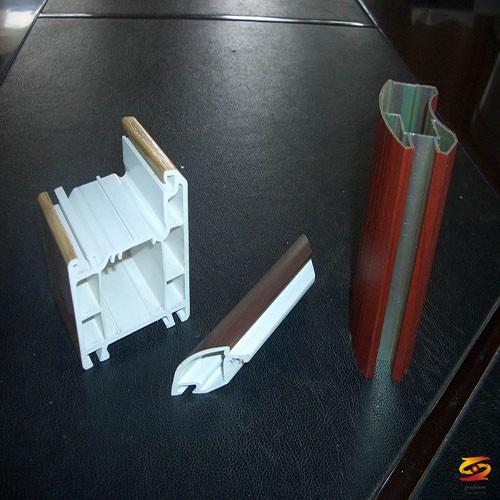

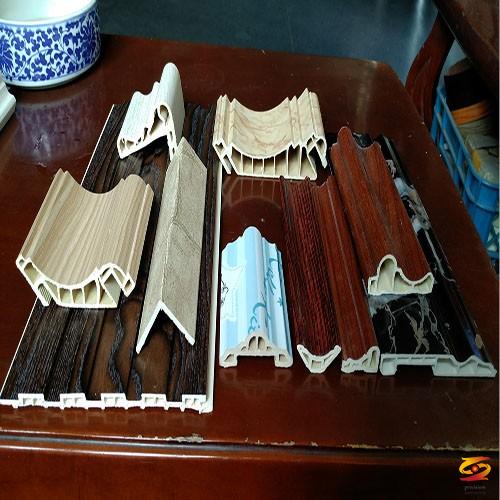

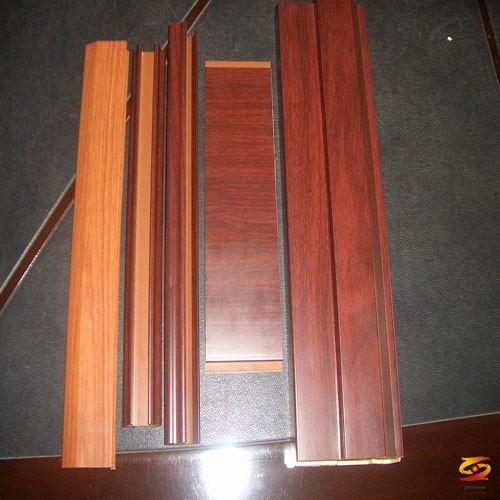

    This machine is suitable for decorative strips and aluminum and plastic materials covered with PVC film. The equipment adopts a high-standard glue coating method, which can cover materials with various angles, convex and concave surfaces, grooves, curling, arcs and other shapes. Covered products are suitable for use in doors, windows, building materials, furniture, desktop and other related industries. It can perfectly coat the surface of products with complex shapes.

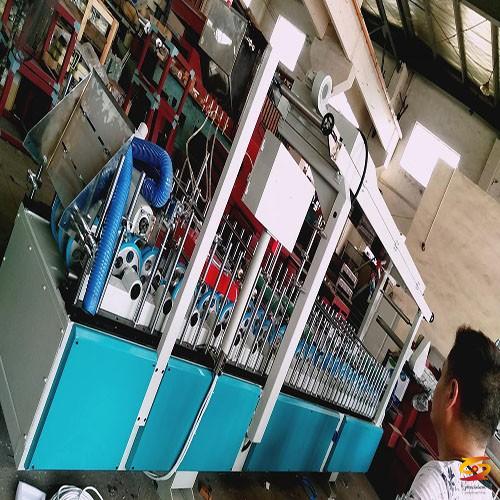

    Equipment characteristics:

    a. The frame is made of high-quality steel plates and profiles welded and processed with precision, and the frame is stable and firm. High-precision gearbox transmission is adopted, the motor adopts high-quality gear motor, and the speed is variable frequency.

    b. The plastic box is made of aluminum alloy. The CNC machine is processed as a whole. The precision of the glued surface is extremely high. The amount of glue can be precisely controlled. The amount of glue is completed by adjusting the bolts on both sides of the glue box. of. The inside and outside of the plastic box are treated with high-strength Teflon, non-sticky and easy to clean.

    c. The bottom wheels are all made of silicon rubber aluminum wheels, with good wear resistance, non-adhesive, and long service life.

    d. Optional dual roll film or brush disk dust removal and other devices.

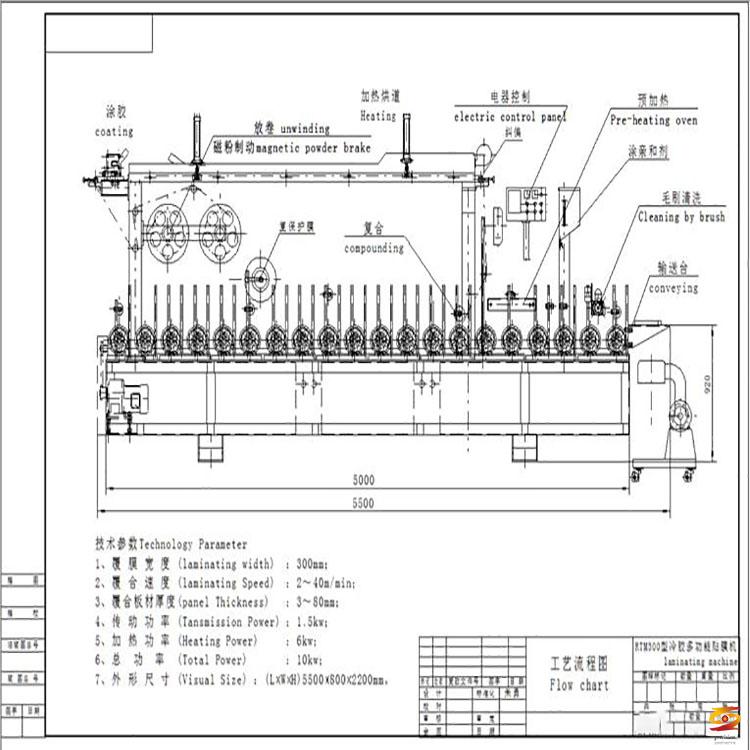

    technical parameter:

    Effective film width   5～300mm

    Lamination thickness  3-80mm

    Laminating speed 2～25m/min

    Transmission power 1.5KW

    Heating power of upper drying tunnel 8 KW

    Total power 12KW (excluding hot air gun power)

    Dimensions 5250x800x2200mm

    Equipment weight 1500KG
