talk about PVC synthetic resin tile production line equipment

Talk about tiles, talk about PVC synthetic resin tile production line equipment
Tags: pvc synthetic resin tile equipment resin tile machinery resin tile production line pvc tile production line pvc glazed tile machinery equipment

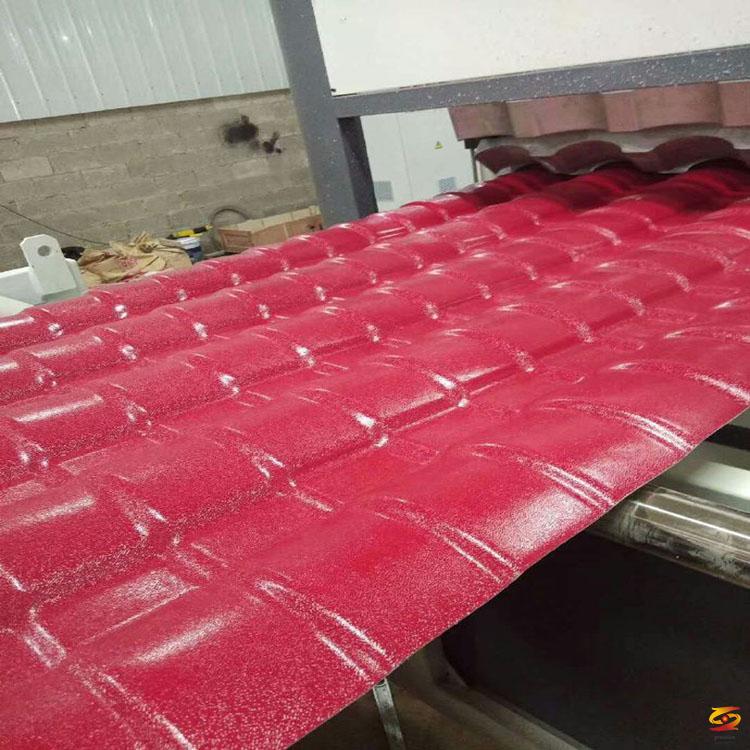

PVC resin glazed tiles are also called resin tiles. Resin glazed tiles are a new type of building material. It is widely used and recognized. So more and more people want to invest in the production of PVC resin tiles, OK, please read the following text carefully. Synthetic Resin Tile Equipment Resin Tile Equipment Resin Tile Production Equipment Resin Tile Machine Equipment Resin Tile Machine Resin Tile Machinery Resin Tile Machinery Resin Tile Extrusion Line PVC Resin Tile Processing Machinery Glazed Tile Equipment Glazed Tile Production PVC Resin Tile Extruder



The following describes the tile and tile equipment from several aspects

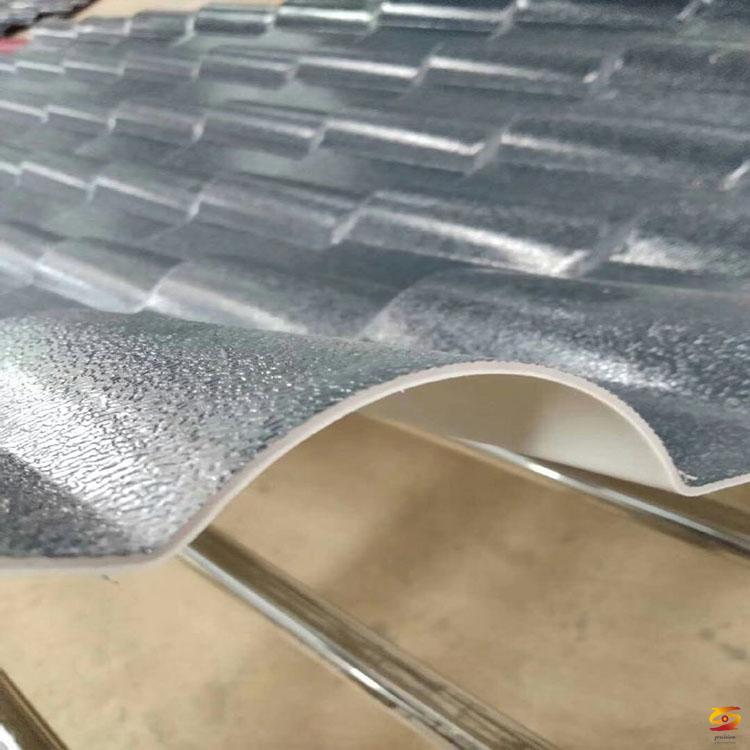

1. Main parameters of PVC resin tile:
1. Conical twin screw extruder 80/156 and 50/30 single screw co-extrusion machine. Host motor 55KW, output 300 / 400KG / H
2. The width of the tile: 880 and 1050
3. The thickness of the tile: 2-3MM
4. The wave distance of watts: 160MM, wavelength 220MM, wave height 30MM
Second, the scope of use of PVC resin synthetic tiles: suitable for flat slopes, villas, mobile houses, factories, garden pavilions, etc.
3. Product introduction: A new generation of roofing material, PVC synthetic resin tile, is developed and produced by international advanced technology. It is a new generation of roofing material produced for heavy acid rain areas, high ultraviolet radiation areas, and acid and alkali corrosive plants. This resin tile is divided into two layers, one layer is a special resin (ASA or PMMA) with strong weather resistance to ensure the durability and weather resistance and acid and alkali corrosion resistance of PVC synthetic resin tiles. The bottom layer is white or off-white tough material (PVC, calcium powder, stabilizer, stearic acid, paraffin, CPE and other synthetic materials). Two layers of different materials are co-extruded at one time by a twin-screw extruder. The organic combination of the two materials gives the products their respective functions. The surface layer is smooth, beautiful and corrosion-resistant. The toughness and hardness of the bottom layer are perfectly combined.

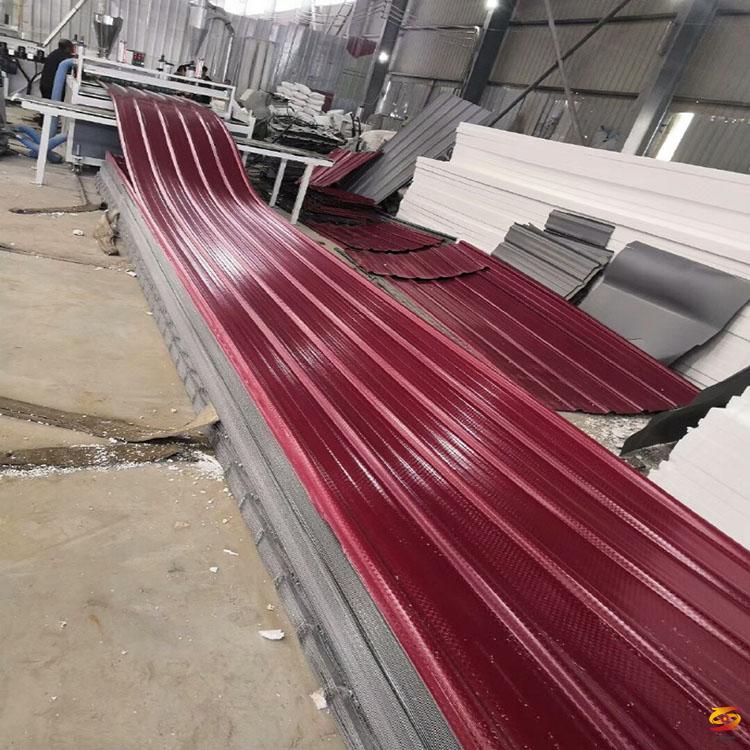

Four: PVC synthetic resin tile / PVC glazed tile extrusion production line configuration (watt points 880 and 1050 are usually large and small tiles)
1. One spring feeder
2. One conical twin-screw extruder SJSZ80 / 156
3. A drying hopper with vacuum loading
4. Single screw extruder SJ50 / 30 1 set
5. A molding die
6. One distributor
7. One water temperature controller
8. An embossing roller
9. Forming machine + trimming machine + cutting machine + stacking rack A8
10. A set of SMJ400 / 500/600 milling machine
11.SWP360 / 450 one plastic crusher
12. Plastic mixer can choose single mixer or SRL-Z500 / 1000L high-speed mixing unit (with screw feeder)
13. Oven
These are the mechanical equipment required for the production of PVC resin synthetic tiles. Please contact me for specific parameter details. My contact information is in the blog's personal information.
Fifth, the installation of resin tiles: there is a relatively strict procedure for the installation problem, which is complicated to say and easy to do. Everyone knows the color steel tile, the master who installs the color steel tile will. Or we train you.
6. The advantages of PVC synthetic resin tiles
1. Lasting color:
2. Carrying capacity:
3. Good sound insulation effect:
4. Impact resistance / low temperature resistance:
5. Corrosion resistance
6. Thermal insulation
7. Clean yourself
8. Green and environmental protection: The resin tiles can be recycled, and the waste materials are recycled and reused, which is now combined with the green environmental protection requirements
9. Waterproof
10. Fire resistance
11. Corrosion resistance
VII. Relevant matters of investment in machinery equipment of PVC resin tile extrusion production line
1. Environmental protection procedures: If you want to invest in tiles, please go to the local environmental protection department to consult, how to get an environmental assessment certificate The environmental assessment work should be done in strict accordance with the requirements of the local environmental protection bureau leaders. In the process of handling the EIA, we generally need to provide product production processes and raw materials used. Just look for me directly, we will help you.
2. Plant: It is recommended that the plant area is more than 1000 square meters, the shortest should not be shorter than 40 meters, and the length of the production line itself is 30 meters. The width is recommended to be more than 15 meters, and the height is more than 3.7 meters.
3. Hydropower: Water is recycled water, and there is no waste or pollution. As long as there is a reservoir. The size of the pool is recommended to be 5-8 meters long and 2-3 meters wide and 2-3 meters deep. For anti-seepage treatment, the location of the pool can be around the workshop. If you want to place it inside the workshop, please coordinate with our engineers when building the workshop. Design and deployment of waterway pools. It is recommended to have a 200KW independent transformer. If there are more on the production line, it will be discussed again.
4. Labor: A set of production line requires 6-8 people, a 12-hour shift, divided into two shifts.
5. Profit analysis (for reference only): the daily output of the 80 machine is about 7-8 tons, and the current wattage is 2.5 or 3MM. Their output is about 2000 meters and 1600 meters respectively, and the weight of the thin tile is about About 4 kilograms, the weight of thick tiles is 6-7 kilograms. The price of different raw materials varies from region to region plus the production cost of labor. Generally, the cost of thin tiles is about 18 yuan / meter, while the thickness of thick tiles is 25/6 / meter. In this way, please investigate the price of tiles in the local market, and the profit margin is clear at a glance. The above values are from customer information and are for reference only.

Happiness is similar. Happiness comes from struggle. Come on.
