PP HOLLOW CORRUGATED SHEET MACHINE

PP HOLLOW CORRUGATED SHEET MACHINE  , PP CORRUGATED SPP CORRUGATED SHEET EXTRUSION PROCESS  , PP CORRUGATED SHEET EXTRUSION LINE  , PP CORRUGATED SHEET PRODUCTION LINE  , PLASTIC CORRUGATED SHEET MACHINE  , PP HOLLOW SHEET MACHINE  , PP PACKING SHEET MACHINE  , PP CORRUGATED HOLLOW SHEET MACHINE  , PP FLUTE SHEET MACHINE  , PP TWIN WALL SHEET MACHINE  , PP DOUBLE WALL CORRUGATED SHEET MAKING MACHINE  , PP HOLLOW SHEET CO EXTRUSION  , PP ABA SHEET MACHINE  , PP SHEET WITH RECYCLED MATERIAL  , PP HOLLOW SHEET MACHINE WITH RECYCLED MATERIAL  , PP HOLLOW SHEET CO EXTRUSION MACHINE  , PP HOLLOW SHEET ABA PRODUCTION  , PP BOX MAKING MACHINE  , CANTON BOX MAKING MACHINE  , PLASTIC PACKAGE MAKING MACHINE  , PP HOLLOW SHEET EXTRUSION LINE  , PP HOLLOW SHEET EQUIPMENT  , PP HOLLOW SHEET EXTRUSION MACHINE  , PP HOLLOW SHEET EXTRUDER
Inquiry Send Email

Description

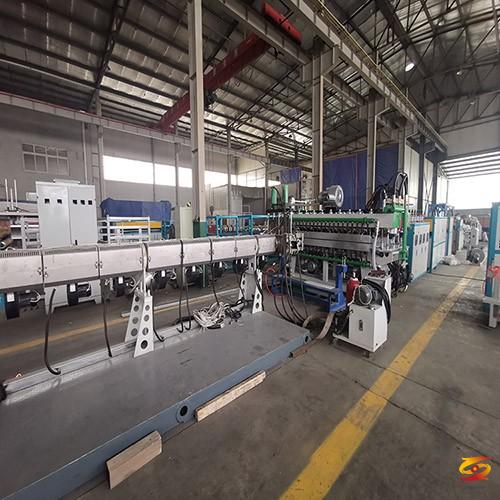

PP, PC hollow grid board production line

The production line can continuously extrude and produce PP, PC, PE hollow lattice board products. The width of the board is 2800mm and below, the pp hollow grid board products are widely used in refrigerators, turnover boxes, packaging boxes, trays, pads and other fields, and the pc hollow sun board products are widely used in office buildings, halls, shopping malls, stadiums, Lighting roofs for public facilities, canopies for stations, parking lots, pavilions, lounge corridors, noise barriers for highways and urban elevated roads.

Extruder: According to the different materials used, the single screw extruder (exhaust, non-exhaust) is selected. The special design of the screw and the accurate temperature control system ensure good plasticization and stable extrusion with high output. The use of hard-tooth surface gearboxes has the advantages of long service life, high stability and low noise. Using domestic motor, reliable quality and high stability. The special screw is used and a water cooling system is installed to ensure the stability and output of the extruder.

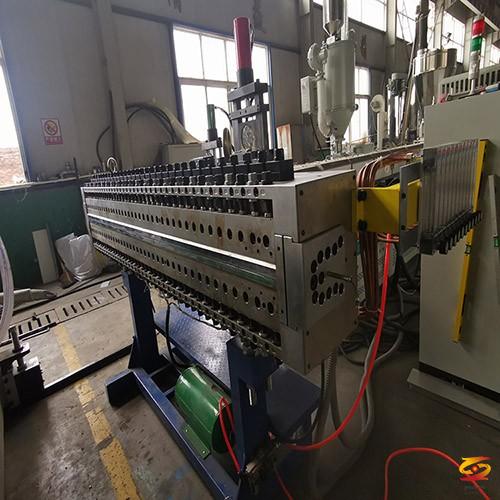

Net changing and mould: Hydraulic quick net changing device ensures that the net is changed without leakage, and the ring net is fast and effective; the mould adopts a coat hanger structure mould and is equipped with an air flow agent according to different materials.

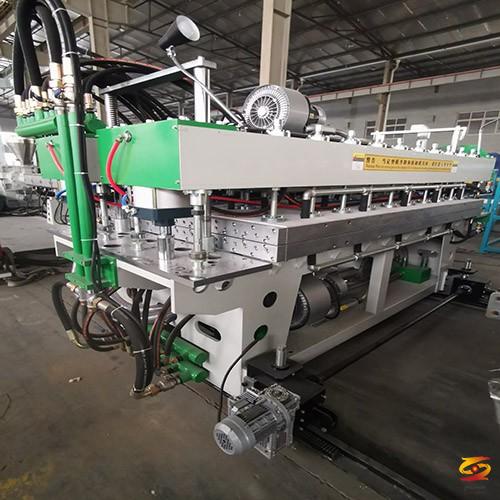

Vacuum setting table: It adopts wafer-type setting mold, equipped with mold cooling device, adopts hydraulic or pneumatic lifting, and is equipped with emergency stop function.

Five-roller traction machine: The traction rubber rollers are made of nitrile rubber rollers, and the five-rollers are driven synchronously to prevent the loss of step during the traction process of the sheet, and ensure the stability of the sheet and the flatness of the sheet.

Oven: The power control module is used, and the stainless steel elongated one-piece heating rod is used to ensure the constant temperature of the oven and uniform heating of the plate.

Slitting device: Manually adjust the position of the tool, follow-up cutting, to ensure the synchronization of the cutting speed and the speed of the plate, and the continuity. It is cut with an alloy knife to ensure that the plate incision is flat.

Double-roller traction machine: The traction rubber rollers are made of nitrile rubber rollers, driven by frequency converters, to prevent step loss during the traction process of the sheet, and ensure the stability of the sheet and the flatness of the sheet.

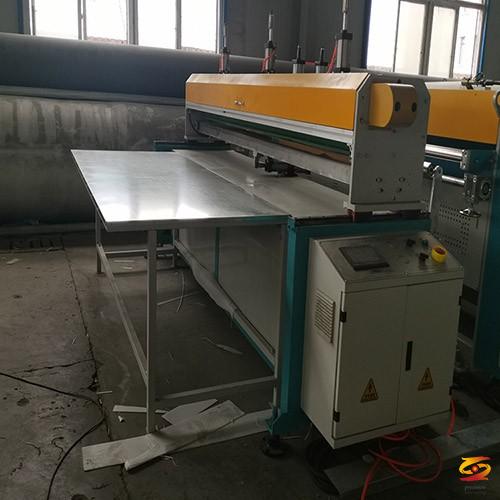

Cross-cutting machine: Clamping by air cylinder, follow-up cutting, motor drive, to ensure that the cutting speed is synchronized with the speed of the plate. It is cut with an alloy blade and equipped with a vacuum cleaner.
