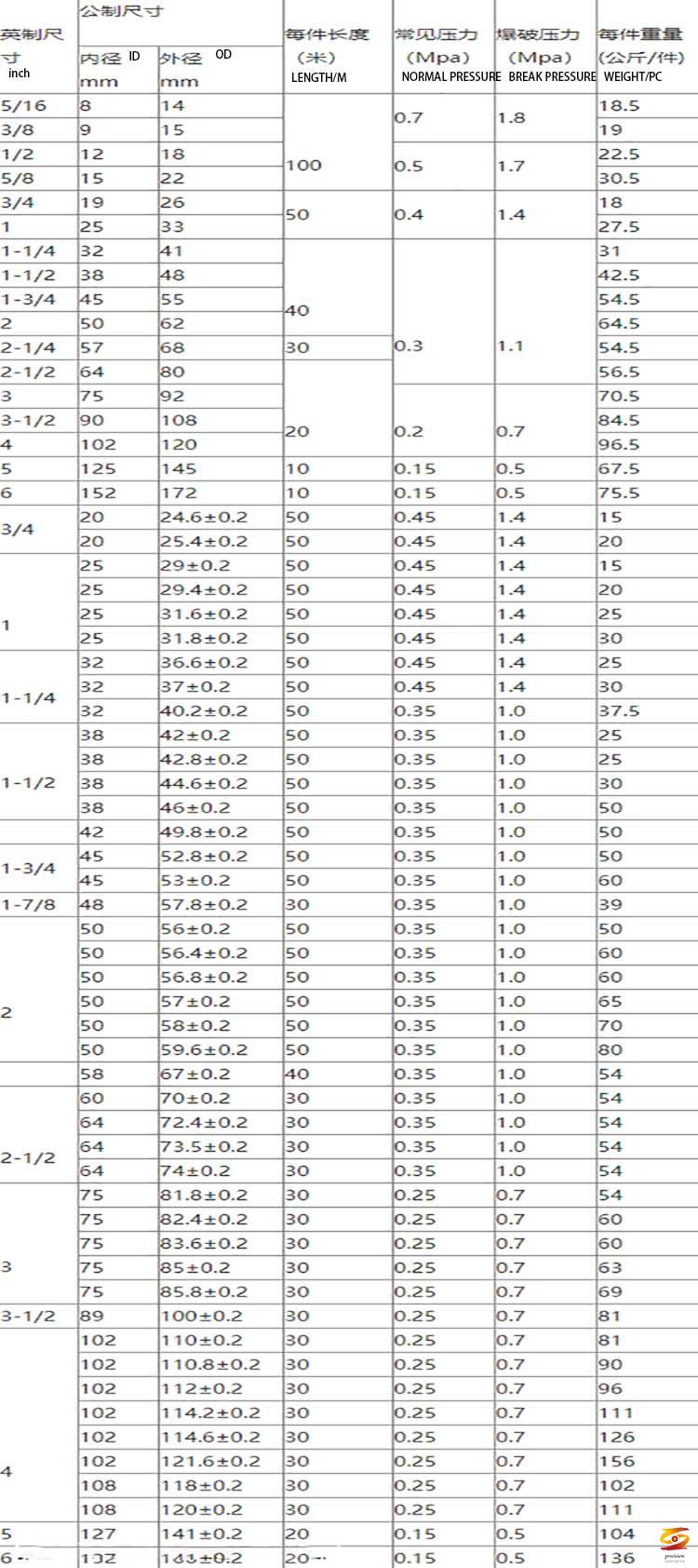

PVC steel reinforced pipe specification
PVC steel wire hose is a kind of PVC reinforced hose. Most of them are transparent and can observe the internal fluidity at all times. The appearance is smooth, soft and no bubbles. It has pressure resistance, oil resistance, corrosion resistance, acid and alkali resistance and is not easy to age. And other characteristics, most of them are used in machinery, petroleum, chemical industry and other industries such as feeder, generator set oil pump. The main anti-compression part uses steel wire. During the production process, after the first layer of glue is produced, the steel wire is used to add two layers of hose to fuse it into one, so it will be much larger than the ordinary plastic hose under pressure. The temperature range is about -10 degrees to 65 degrees, the working pressure can be from 0.2mpa to 1.2mpa, and the inner diameter from 10-250mm wall thickness can be 2-15mm.
