PP PE ABS PC CUTTING BOARD PRODUCTION LINE

Description

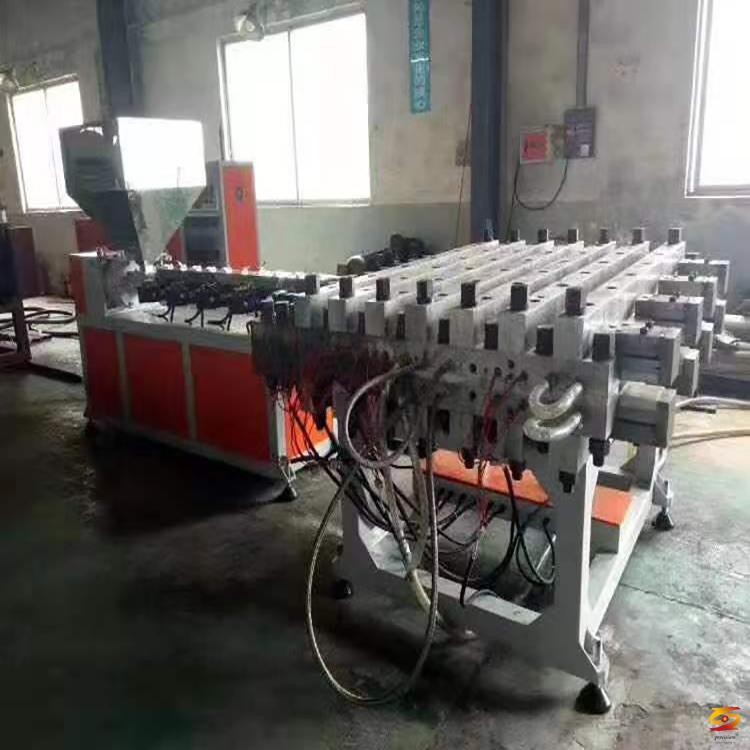

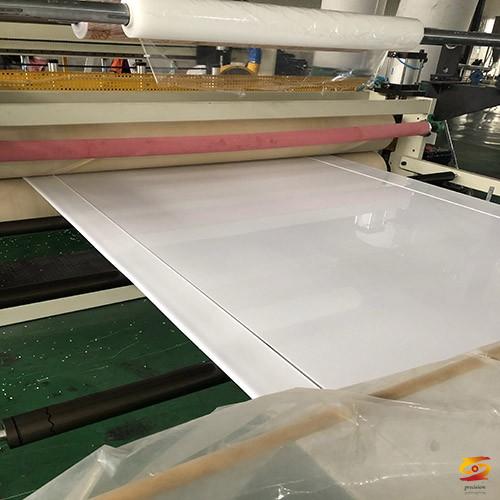

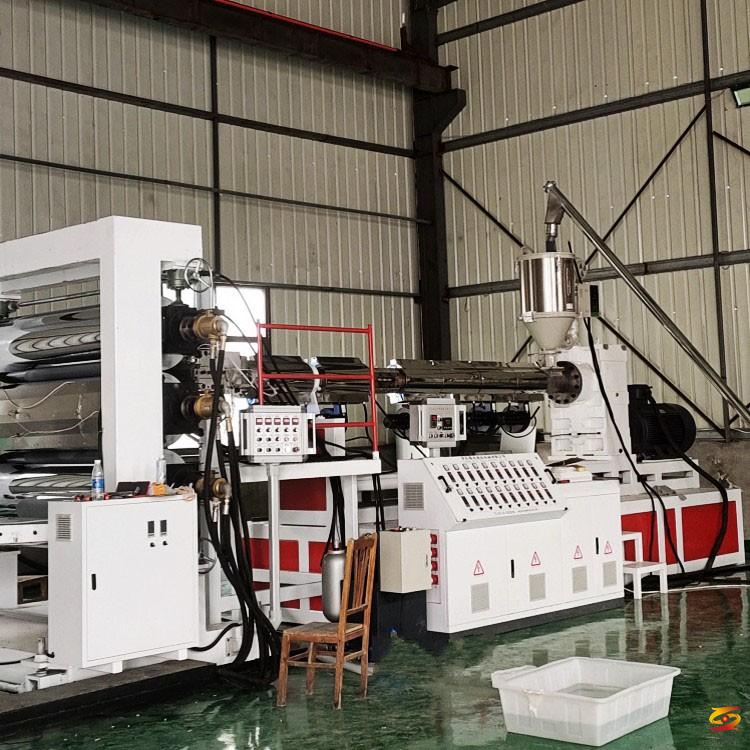

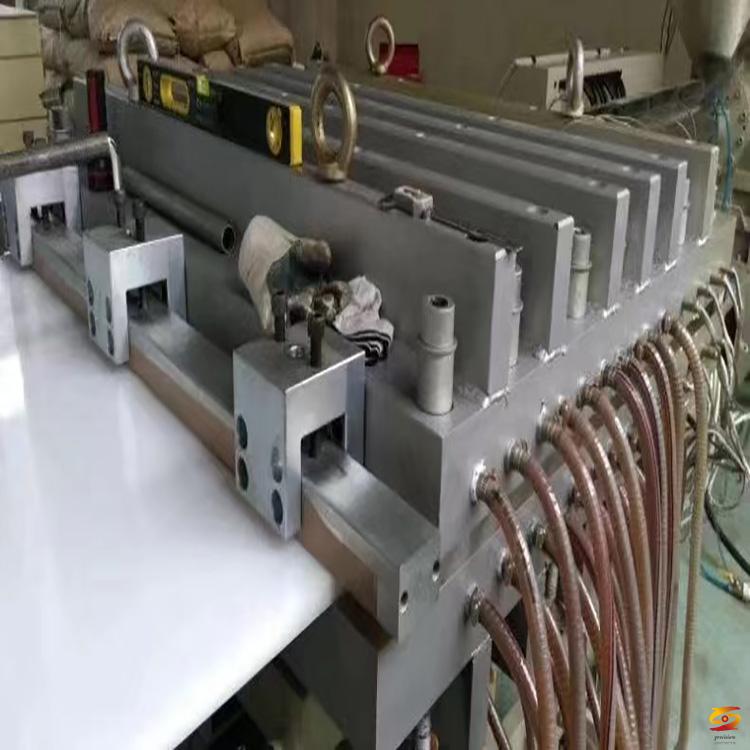

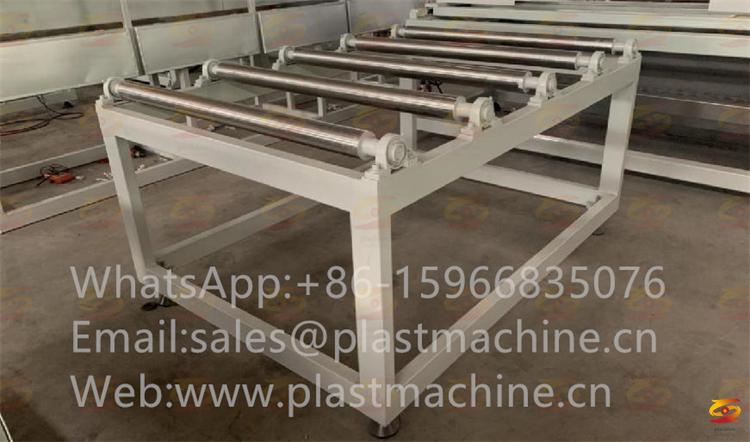

The plastic cutting board equipment of pp pe pc abs board equipment consists of: first, the feeding machine is plasticized at high temperature, the prototype is extruded by a single-screw extruder, and the prototype is extruded by a three-roll calender (the mold temperature machine controls the temperature of the three-roller), and after cooling The cooling of the bracket is accompanied by the trimming of the trimmer, the pulling and forming by the tractor, and finally the required size is cut by the shearing machine and finally completed by the blanking frame. (In general, the production line part does not include molds, crushers, etc., which are configured according to actual needs. These must be purchased separately on demand.)

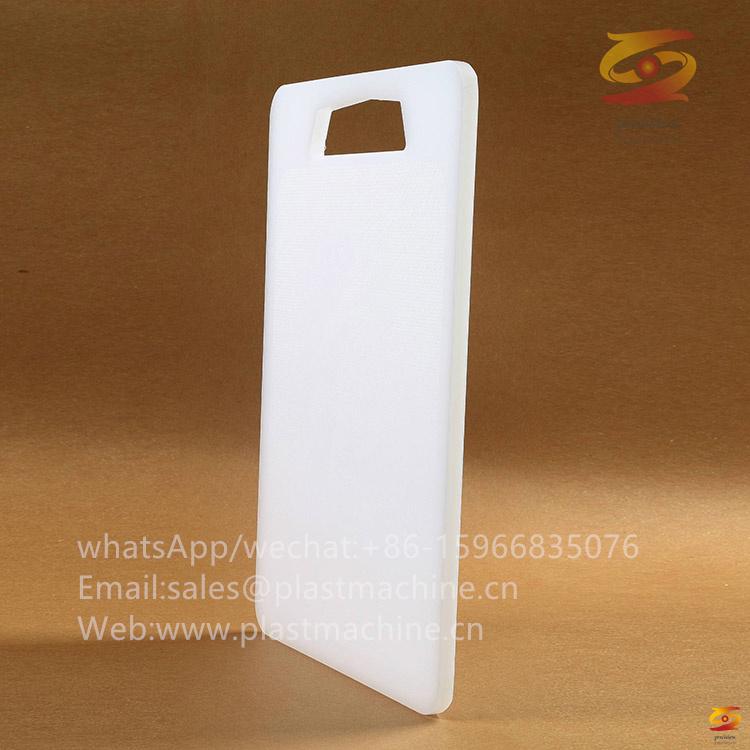

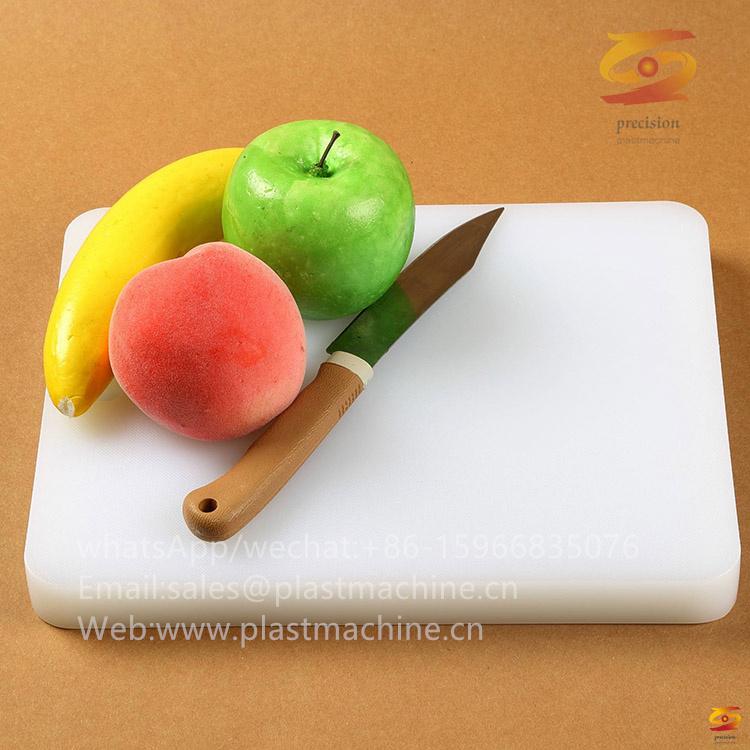

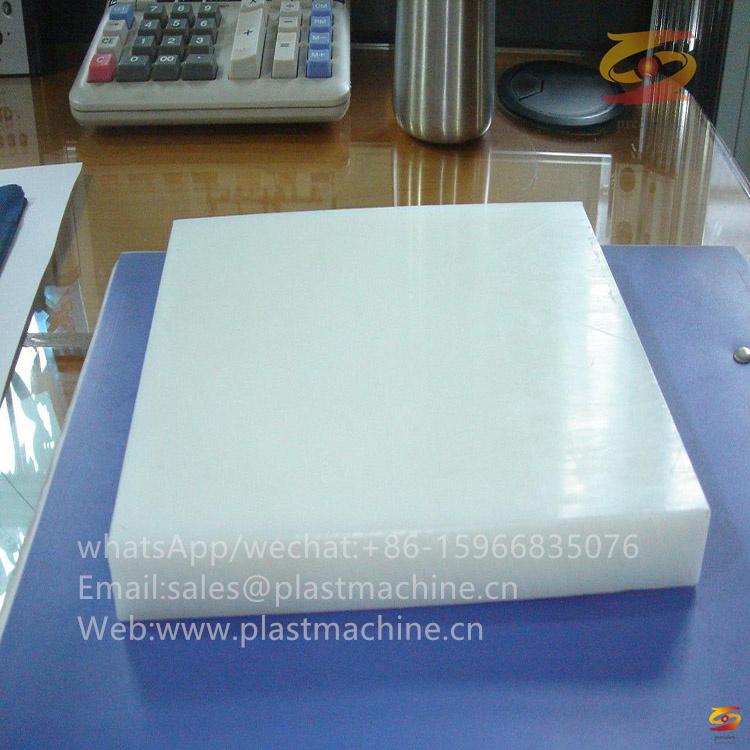

PP chopping board white board pure material board production introduction

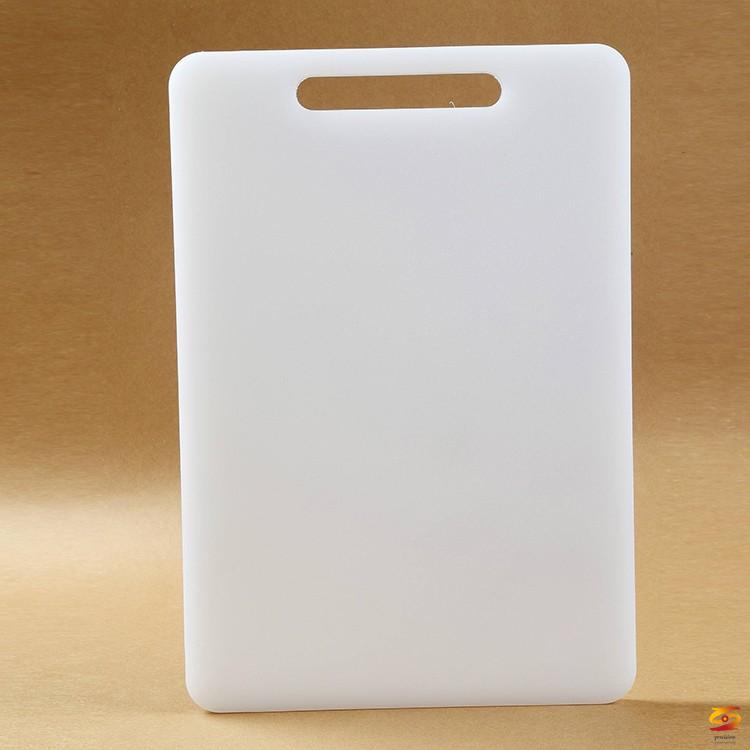

Product name: white PP cutting board, white polypropylene board, white PP plastic board;
1. Manufacturing process and process:
1. Raw material: polypropylene PP particles;
2. Process: extrusion process;
3. Process: mixing - feeding - heating and plasticizing - extrusion molding - cooling - cutting - packaging;
4. Packaging: PE protective film is attached to the surface (front or back), and it is packed in wooden pallets; the maximum weight of each pallet is not more than 2.5 tons;

2. Appearance and color:
Color: white (semi-transparent)
3. Specifications:
(1). Thickness range: 2-30mm;30-200mm,200-600mm
2-20mm sheet thickness negative tolerance 0.2-0.5mm, 20-30m sheet thickness negative tolerance 0.5-1.0mm;
(2). Width:
500-700-1000-2000mm
Length, width and diagonal error ±3mm;
(3). Length: the length can be customized;
(4). Regular size:
500x1000mm, 700X1400mm,1000×2000mm; 1220×2440mm; 1300×3000mm; 1500×3000mm; 2000×3000mm;
(5). Weight calculation: thickness (mm) × length (m) × width (m) × density = theoretical weight (KG)
Four, product classification:

According to the different product technology and raw materials, PP board is divided into the following types:
1. Pure PP board: density 0.90-0.93;
2. Modified PP board: density 0.95-1.2;
3. Glass fiber reinforced PP board: density 1.0-1.2;
3. Flame retardant PP board: density 1.2;
4. ABA three-layer co-extruded PP board: density 0.92-0.95;

Five, physical properties:
The following data of the company's products are measured pure new material 0.91PP board, only for reference, strictly prohibited for mandatory standards!
1. Specific gravity: 0.91g/cm³;
2. Shore hardness: D/65/1 degree;
3. Bending strength: 35.2MPa;
4. Bending modulus: 1170MPa;
5. Tensile strength: 23.6MPa;
6. Tensile modulus: 1290MPa
7. Elongation at break: 133%
8. Notched impact strength: 93J/MC
9. Load deformation temperature: 59.7℃
10. Vicat softening temperature: 78.3℃
11. Light transmittance: 30.2%
12. Vertical combustion: HB
13. Dimensional stability: X direction -0.1% Y direction -0.1%
14. Surface resistivity: 4.51x1017Ω/sq
15. Volume resistivity: 2.8x1017Ω·cm
16. Water absorption rate: 0.01%

6. Corrosion resistance:
It can be used in general acidic, alkaline, salty and organic solvents (especially active solvents), but it will be corroded by chlorine-containing solvents, aliphatic, aromatic hydrogen and other chemicals, not suitable for concentrated nitric acid, chromic acid, etc. ;

7. Food contact performance: food-grade materials, which can directly contact food, medicine, etc.;
Eight, product features:
1. Excellent toughness and dimensional stability;
2. Reliable insulation performance and good heat resistance;
3. Acid and alkali resistance, chemical corrosion resistance;
4. It is easy to process and has excellent welding performance;
5. Non-toxic and environmentally friendly, durable;

9, processing performance:
1. Cutting tools: wide-tooth table saw, woodworking saw, hand saw, CNC engraving machine, etc.; the cutting of thick plates above 30mm requires water cooling;
2. Processing methods: hot melt welding, plastic forming, drilling, punching, engraving, etc.;
3. Processing tools: special hot air welding gun for plastic welding, welding machine, butt welding machine, bending machine;

10, Product use:
1. Plastic tank body: electroplating tank, pickling tank, passivation tank, oxidation tank, phosphating tank, electrolytic tank, etc.;
2. Industrial acid and alkali resistance equipment: vertical/horizontal storage tanks, stirring tanks, reaction kettles, industrial pumps, etc.;
3. Electroplating equipment: hardware electroplating and precious metal electroplating equipment, semi-automatic/automatic barrel plating, rack plating equipment, anodizing equipment, gantry electroplating line, annular climbing electroplating production line, etc.;
4. Coating equipment: electrostatic powder spraying room, powder spraying equipment parts, etc.;
5. Laboratory equipment: medicine cabinets, fume hoods, laboratory benches, etc.;
6. Environmental protection equipment: centrifugal fans, ventilation pipes, acid mist waste gas towers, desulfurization and denitrification equipment, dust collectors, spray towers, complete sets of waste gas treatment equipment, sewage treatment equipment, and water circulation equipment;

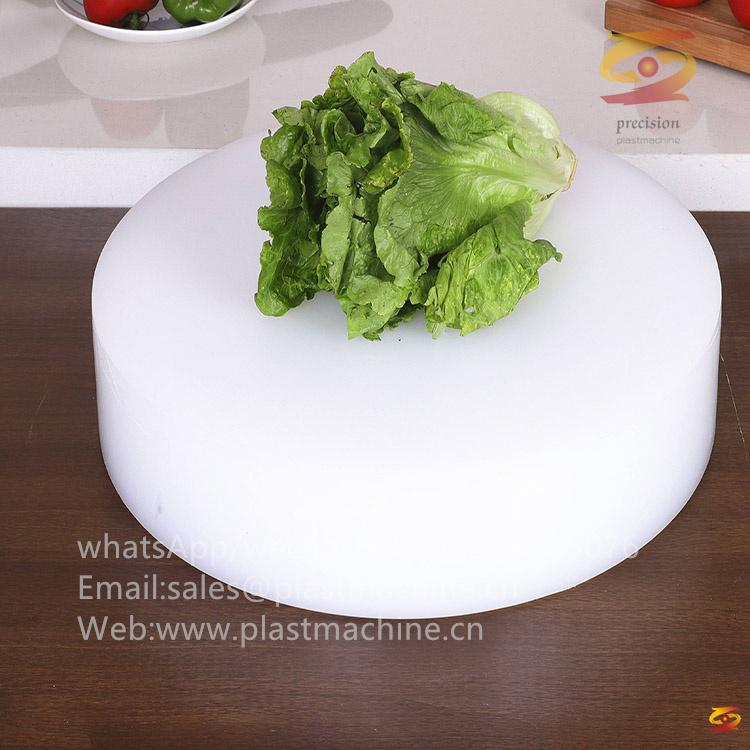

7. Other uses: leather machine/shoe material machine pad, punching mattress board, household chopping board, cutting board, advertising light box board, screen printing, sign board back board, food packaging, food and drug packaging machinery, etc.,

PP, PE,PC,ABS thick plate production line:
PP thick plates are widely used in chemical industry, food industry, anti-corrosion industry, purification industry, and environmental protection equipment production industry.
Acid and alkali-resistant equipment, electroplating equipment, solar photovoltaic equipment, environmental protection equipment, waste water, waste gas discharge equipment, scrubbers, clean rooms, semiconductor factories and other related industries. Widely used in punching board, punching mattress board, etc.
PE thick plates are widely used in medical appliance parts, seals, cutting boards, sliding profiles. Widely used in chemical, machinery, chemical, electric power, clothing, packaging, food and other industries. It is widely used in gas transportation, water supply, sewage, agricultural irrigation, fine particle solid transportation in mines, and fields such as oil field, chemical industry, post and telecommunications, etc.

PP, PE thick plate production line:
PP thick plates are widely used in chemical industry, food industry, anti-corrosion industry, purification industry, and environmental protection equipment production industry.
Acid and alkali-resistant equipment, electroplating equipment, solar photovoltaic equipment, environmental protection equipment, waste water, waste gas discharge equipment, scrubbers, clean rooms, semiconductor factories and other related industries. Widely used in punching board, punching mattress board, etc.
PE thick plates are widely used in medical appliance parts, seals, cutting boards, sliding profiles. Widely used in chemical, machinery, chemical, electric power, clothing, packaging, food and other industries. It is widely used in gas transportation, water supply, sewage, agricultural irrigation, fine particle solid transportation in mines, and fields such as oil field, chemical industry, post and telecommunications, etc.
The main purpose of pe board

PE board is a kind of plastic sheet specially used in industry. It is mainly used in anti-corrosion engineering, waste gas engineering, environmental protection engineering and other equipment. It can be processed into the required PE board according to industrial requirements through professional processing and cutting technology. The processed products are generally used in the fields of chemical industry, machinery, electric power, packaging, backing board, carriage board and other industries.
It has the characteristics of high toughness, tensile strength, corrosion resistance, low temperature resistance and good wear resistance. It is widely used in chemical, clothing, packaging, food and other fields. Can be filled, flame retardant, modified, the surface can be embossed, frosted. Thickness: 1-30mm Color: natural color, white, blue, yellow, gray, black, green, etc.
PE polyethylene sheet is a kind of high crystallinity, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section.
PE sheet has excellent resistance to most household and industrial chemicals. Certain classes of chemicals are chemically aggressive, such as corrosive oxidants, aromatic hydrocarbons, and halogenated hydrocarbons. The polymer is non-hygroscopic and has good water vapour resistance for packaging applications. HDPE has good electrical properties, especially high insulation dielectric strength, making it very suitable for wires and cables. Medium to high molecular weight grades have excellent impact resistance at ambient temperatures and even as low as -40F. The unique properties of the various grades of HDPE are the appropriate combination of four basic variables: density, molecular weight, molecular weight distribution, and additives. Different catalysts are used to produce tailor-made polymers with special properties. These variables combine to produce HDPE grades for different applications; achieving the best balance in performance. Has good chemical stability.
