Raw material processing Crystal drying, crystallization-free drying, crystallization-free drying, crystallization-free drying
Product structure can produce single-layer, double-layer, multi-layer structure PET sheet
Product width 600-1220mm
Product thickness 0.15-1.8mm
Output 200-1000kg/h (output varies according to different models)

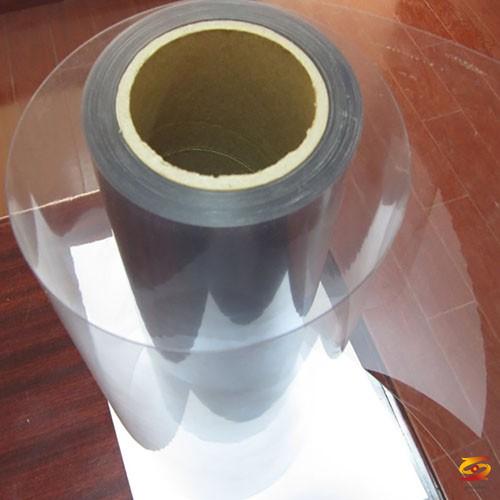

1. PET transparent light sheet is a kind of thermoplastic green environmental protection plastic product. It has the remarkable characteristics of good ductility, little temperature influence, and good insulation characteristics among thermoplastics. After production and processing, the PET transparent light sheet has good brightness and high-quality transparency.
2. Product features: 1. Easy to process; 2. Degradable; 3. High transparency; 4. No water lines; 5. Excellent thermoplastic properties; 6. Sexless, reliable hygienic properties, and can be used for food, medicine and Device packaging
3. The proportion is 1.35;
4. Product size: 1. Thickness: 0.15mm-2.5mm; 2. Product width: 600-1280mm
5. Uses: PET transparent light film is mainly used for blister, folding box, printing, window, panel, advertising consumables, and is widely used in food packaging, toy gift packaging, hardware tool packaging, advertising printing packaging, electronic product packaging, clothing Templates, tags, etc.

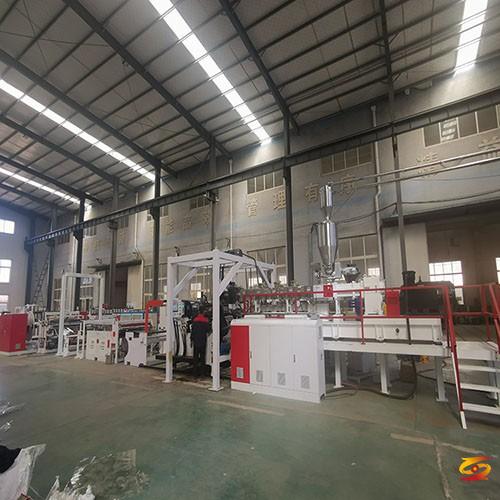

Features of PET sheet production line:

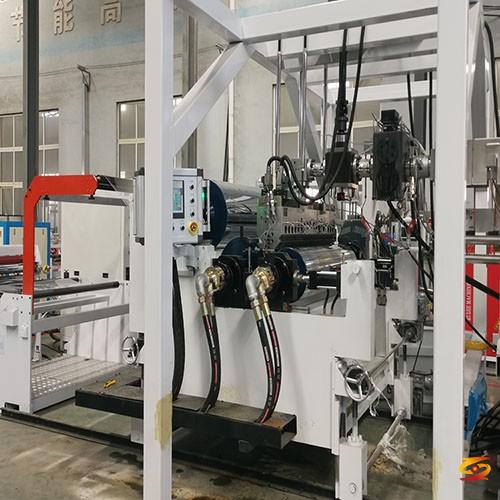

The screw adopts abrupt screw design, with few precision points, high output, uniform plasticization, flat three-roll calendering design, the temperature of the roller is adjustable, the surface gloss is high, the machine is easy to operate, easy to adjust, and the thickness of the sheet is thousands of Positioning in rows, the cutting adopts automatic meter cutting device, the winding machine adopts tension design, the winding is flat, the degree of automation is high, and the production is more convenient
Process principle of PET sheet production line:
Plastic pellets-extruder: raw material melting and plasticizing-quick-change filter screen-extrusion die head molding extrusion-three-roll calender-cooling and shaping device-trimming mechanism-traction conveying-shearing device.
